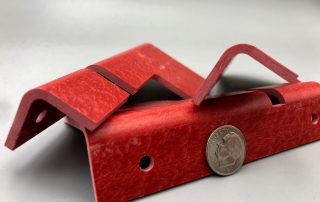

GPO Materials, or glass polyester, are laminates formed from fiberglass reinforced with thermosetting polyester resins. Some of the trade names for GPO-3 include Glastic® and Haysite®
| Lamicor Grade GP-9105 | Lamicor Grade GP-9206 | Lamicor Grade GP-9306 | Lamicor Grade CP-200 HT | |||
| Mechanical | ASTM Test Method | Polyester Glass Laminate (GPO-1) | FR Polyester Glass Laminate (GPO-2) | FR Polyester Glass Laminate (GPO-3) | High Temperature Polyester Glass Laminate | Units |
|---|---|---|---|---|---|---|
| Strength to Weight Ratio | - | - | - | - | - | ksi |
| Specific Gravity @73 F | D792 | 1.95 | 9,000 | 1.80 | 1.77 | - |
| Tensile Strength @73 F, (ult)/(yld) | D638 | 9,000 | - | 9,000 | 15,000 | psi |
| Tensile Modulus of Elasticity @73 F | D638 | - | - | - | - | psi |
| Tensile Elongation at Break @73 F | D638 | - | 21,000 | - | - | % |
| Flexural Strength @73 F | D790 | 21,000 | - | 21,500 | 28,000 | psi |
| Flexural Modulus of Elasticity @73 F | D790 | - | - | - | - | psi |
| Shear Strength @73 F | D732 | - | 30,000 | - | - | psi |
| Comprehensive Strength, (% Deformation) @73 F | D695 | 30,000 | - | 33,000 | 28,000 | psi |
| Comprehensive Modulus of Elasticity @73 F | D695 | - | M-105 | - | - | psi |
| Hardness, Rockwell, Scale as noted @73 F | D785 | M-112 | - | M-105 | M101 | - |
| Hardness, Durometer, Shore D @73 F | - | 8.2 | - | - | - | - |
| Izod Impact, (Notched) @73 F | D256 Type A | - | - | 8.3 | 14 | ft-lb/in of notch |
| Coefficient of Friction, (Dry vs Steel) Dynamic | - | - | - | - | - | - |
| Limiting PV, (with 4 to 1 factor of safety applied) | - | - | - | - | - | psi-ft/min |
| Thermal | ASTM Test Method | Polyester Glass Laminate (GPO-1) | FR Polyester Glass Laminate (GPO-2) | FR Polyester Glass Laminate (GPO-3) | High Temperature Polyester Glass Laminate | Units |
|---|---|---|---|---|---|---|
| Coefficient of Linear Thermal Expansion @73 F | E-831 (TMA) | - | - | - | - | in/in/F |
| Heat Deflection Temperature @264 psi | D648 | - | - | - | - | F |
| Tg-Glass transition termperature, (Amorphous) | D3418 | - | - | - | - | F |
| Melting Point, (VS=Vicat Softening Temp.) | D3418 | - | - | - | - | F |
| Continuous Service Temperature in Air, (Max.) | - | 266 | 311 | 284 | 392 | F |
| Thermal Conductivity | - | - | - | - | - | BTU-in/hr-ft2-F |
| Electric | ASTM Test Method | Polyester Glass Laminate (GPO-1) | FR Polyester Glass Laminate (GPO-2) | FR Polyester Glass Laminate (GPO-3) | High Temperature Polyester Glass Laminate | Units |
|---|---|---|---|---|---|---|
| Dielectric Strength, Short Term | D149 | 400 | 400 | 400 | 380 | Volts/mil |
| Volume Resistivity | D257 | - | - | - | - | ohm-cm |
| Dielectric Constant @10E6 Hz | D150 | 4.5 | 4.95 | 4.1 | 4.10 | - |
| Dissipation Factor @10E6 Hz | D150 | 0.01 | 0.02 | 0.027 | 0.07 | - |
| Flammability @3.1 mm unless noted | UL94 | - | V-0 | V-0 | - | - |
| H2O | ASTM Test Method | Polyester Glass Laminate (GPO-1) | FR Polyester Glass Laminate (GPO-2) | FR Polyester Glass Laminate (GPO-3) | High Temperature Polyester Glass Laminate | Units |
|---|---|---|---|---|---|---|
| Water Absorption, Immersion, 24 hours | D570(7) | - | 0.13 | 0.12 | 0.25 | % by weight |
| Water Absorption, Saturation | D570(7) | - | - | - | - | % by weight |
